PetaLinux to EDF Migration Guide
For new EDF work, see the AMD Embedded Development Framework (EDF) page.
Warning
This page and the included tutorials are for reference purposes only. Users who hit bugs or errors during the migration are expected to debug them on their own. AMD is happy to provide support, but issues introduced by the migration process itself are not in scope for that support.
Overview
PetaLinux
PetaLinux is an embedded Linux Software Development Kit (SDK) targeting FPGA-based system-on-chip (SoC) designs or FPGA designs.
EDF
The AMD Embedded Development Framework (EDF) is a common framework to support platform level development and embedded software solutions for AMD adaptive SoC and FPGA products, along with their evaluation boards.
BSP Directory Structure
PetaLinux BSP
The .bsp file contains:
Prebuilt images
Design files
Configuration files
EDF BSP
The BSP is split across multiple locations and does not use a .bsp
tar file. In PetaLinux, there are no Tcl sources for design file generation, but
in EDF, the design Tcls are open-sourced.
Resources:
Migration Steps: PetaLinux to Yocto EDF
Note
There is no direct conversion from a PetaLinux XSA-based project to EDF. First, migrate the PetaLinux XSCT project to a PetaLinux SDT project. Then, migrate the SDT project to EDF using the steps outlined in the following section.
Steps to Migrate a PetaLinux XSCT Project to a PetaLinux SDT Project
This section describes the process of migrating an existing PetaLinux project created using XSA into the PetaLinux SDT.
These steps assume you have a PetaLinux project created using the XSCT flow by following the guidelines in UG1144: Creating an Empty Project and have made certain configurations. Make sure that the XSCT project is complete and functional.
Step 1: Create New PetaLinux SDT Project
Create a new directory outside of the PetaLinux XSCT project.
Step 2: Copy and Integrate PetaLinux XSCT Customizations into PetaLinux SDT Project
Copy the entire meta-user layer into PetaLinux SDT Project:
Locate meta-user in your PetaLinux XSCT project.
$ cd <petalinux_xsct_project>/project-spec/meta-user
This directory contains board-specific recipes (for example, U-Boot, kernel, rootfs configs).
Copy it into the project-spec directory of the SDT project, or overwrite the existing meta-user directory:
$ cp -r <petalinux_xsct_project>/project-spec/meta-user <petalinux_sdt_project>/project-spec/meta-user
These include the main system configuration and root filesystem configuration:
$ cp <petalinux_xsct_project>/project-spec/configs/config <petalinux_sdt_project>/project-spec/configs/config
$ cp <petalinux_xsct_project>/project-spec/configs/rootfs_config <petalinux_sdt_project>/project-spec/configs/rootfs_config
Step 3: Verify Configuration in the PetaLinux SDT Project
Check configurations through menuconfig:
$ yes | petalinux-config --silentconfig
$ petalinux-config -c u-boot
$ petalinux-config -c kernel
$ petalinux-config -c rootfs
Make sure all custom options are carried forward.
Step 4: Build and Verify the Image (Optional Step)
Build the complete project, verify the generated images:
$ petalinux-build
After the migration from the PetaLinux XSCT project to the PetaLinux SDT project is complete, proceed to migrate the PetaLinux SDT project to EDF using the steps outlined in the following section.
Example user configuration in PetaLinux Project
Kernel Configuration
To configure the kernel, run the following:
$ petalinux-config -c kernel
This opens a kernel configuration menu. The menu can take some time to load.
For example: Remove ZynqMP SHA3 support from kernel configuration.
Navigate to “Device Drivers → ZynqMP SHA3” in the kernel configuration and deselect the option to exclude SHA3 support.

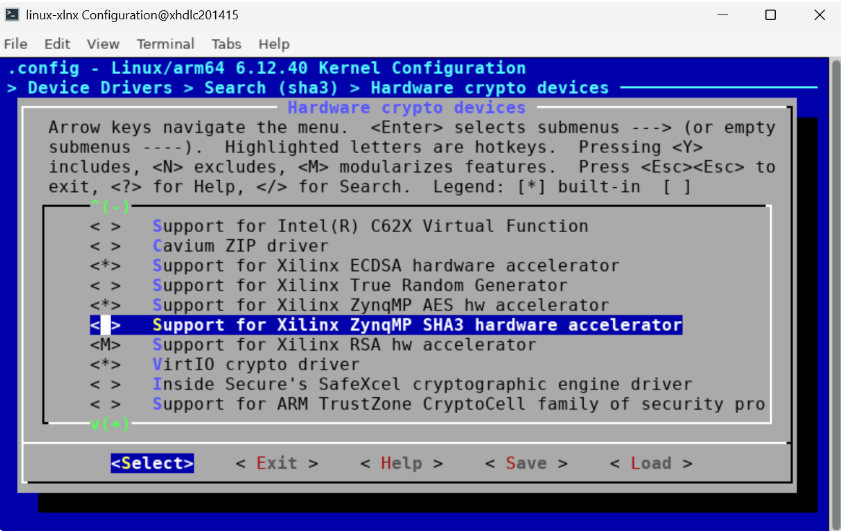

Deselecting the ZynqMP SHA3 driver in the kernel menuconfig.
Root Filesystem Configuration
To configure the root filesystem, run:
$ petalinux-config -c rootfs
For example: Adding util-linux package to the root filesystem
Follow Versal CPM5 PCIe Root Port Design Linux: PetaLinux image generation.
U-Boot Configuration
To configure U-Boot, run:
$ petalinux-config -c u-boot
For example: update the autoboot delay to five seconds:
Navigate to [*] Autoboot → Boot options → (2) Delay before automatically booting and change the value from 2 to 5.

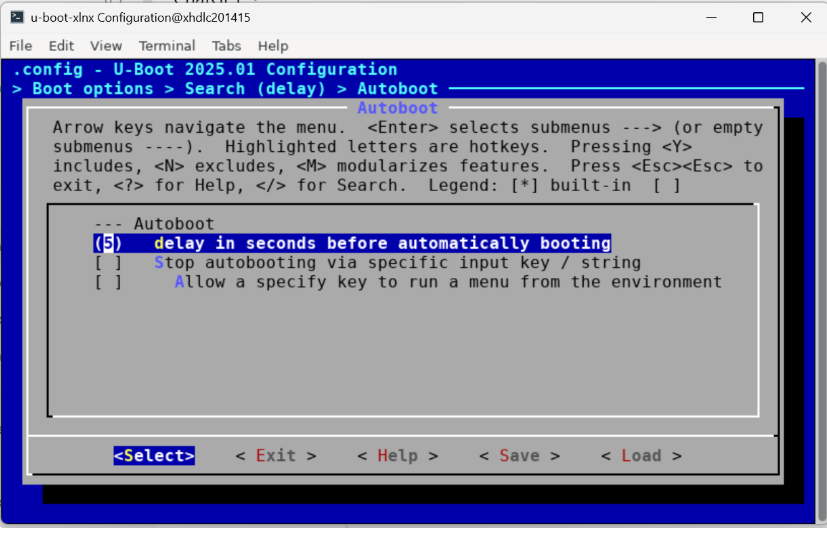

Setting the U-Boot autoboot delay to five seconds in menuconfig.
Steps to Migrate a PetaLinux SDT Project to Yocto EDF
This section describes the process of migrating an existing PetaLinux project to the SDT Yocto EDF flow.
Step 1: Create a Yocto EDF Project
Create a new directory outside of the PetaLinux project.
Set up the Yocto environment: Operating System Integration and Development AMD Versal device portfolio
Step 2: Copy and Integrate PetaLinux Customizations into Yocto EDF
Copy the entire meta-user layer into Yocto (EDF):
Locate meta-user in your PetaLinux project:
$ cd <petalinux_project>/project-spec/meta-user
This directory contains board-specific recipes (for example U-Boot, kernel, rootfs configs).
Copy it into the EDF Yocto source tree:
$ cp -r <petalinux_project>/project-spec/meta-user <edf_workspace>/sources/meta-user
Add the layer to Yocto build (using bitbake-layers):
$ cd <edf_workspace>/build
Add layer:
$ bitbake-layers add-layer ../sources/meta-user
Verify with:
$ bitbake-layers show-layers
Copy configuration files from PetaLinux to EDF:
plnxtool.conf, machine, and multiconfig from the PetaLinux project to the Yocto EDF build configuration:$ cp <petalinux_project>/build/conf/plnxtool.conf <edf_workspace>/build/conf/
$ cp -r <petalinux_project>/build/conf/machine \
<petalinux_project>/build/conf/multiconfig \
<edf_workspace>/build/conf/
conf/machine/xlnx-zynqmp-zcu102-rev1-0.conf:CONFIG_DTFILE_DIR := "${@bb.utils.which(d.getVar('BBPATH'), 'conf/../../../PetaLinux/xilinx-zcu102-2026.1/components/plnx_workspace/device-tree')}"
Update this path according to your project directory structure.
Step 3: Build EDF Images
Build the boot.bin and the EDF SoC Common disk images.
For instructions, see Operating System Integration and Development AMD Versal device portfolio.
Note
If you make any changes in bsp.cfg, comment out the
platform-top.h include in
sources/meta-user/recipes-bsp/u-boot/u-boot-xlnx_%.bbappend,
for example:
FILESEXTRAPATHS:prepend := "${THISDIR}/files:"
#SRC_URI:append = " file://platform-top.h"
SRC_URI:append = "file://bsp.cfg"
SRC_URI += "file://user_2025-10-27-13-13-00.cfg"
This prevents build errors such as:
No rule to make target include/config.h:3:10: fatal error:
configs/platform-top.h: No such file or directory
Verifying User Added PetaLinux Configuration in the EDF Project
At Build Level
Use Yocto commands to confirm migrated configurations:
Verify the boot configuration updates with
bitbake -c menuconfig u-boot-xlnx.Verify the kernel configuration changes with
bitbake -c menuconfig linux-xlnx.Confirm that the changes are reflected in the corresponding configuration.
On Target
Boot the Images From the Storage Boot Medium
Add
boot.binto the EDF disk images (EFI partition in the WIC image). For instructions, see Development Flows.Write the EDF Linux disk image (WIC) to the boot media and boot the board up to Linux. For instructions, see Discovery and Evaluation AMD ZynqMP device portfolio.
Verify the boot using the checks below.
Hit any key to stop autoboot: 5
amd-edf:/home/amd-edf# ls /sys/bus/platform/devices/ | grep sha3
amd-edf:/home/amd-edf# dmesg | grep sha3
util-linux is included in the root filesystem:amd-edf:/home/amd-edf# which mkfs.cramfs
amd-edf:/home/amd-edf# mkfs.cramfs --version
amd-edf:/home/amd-edf# ls /usr/sbin | grep util
Verification on hardware:
PetaLinux-to-EDF migration boot log
